Project overview

RES combines precise pollen detection with actionable insight, empowering people to breathe easier and live better. Pollen allergies affect one in two people worldwide, but in the whole of London there is only one robust pollen detection machine.

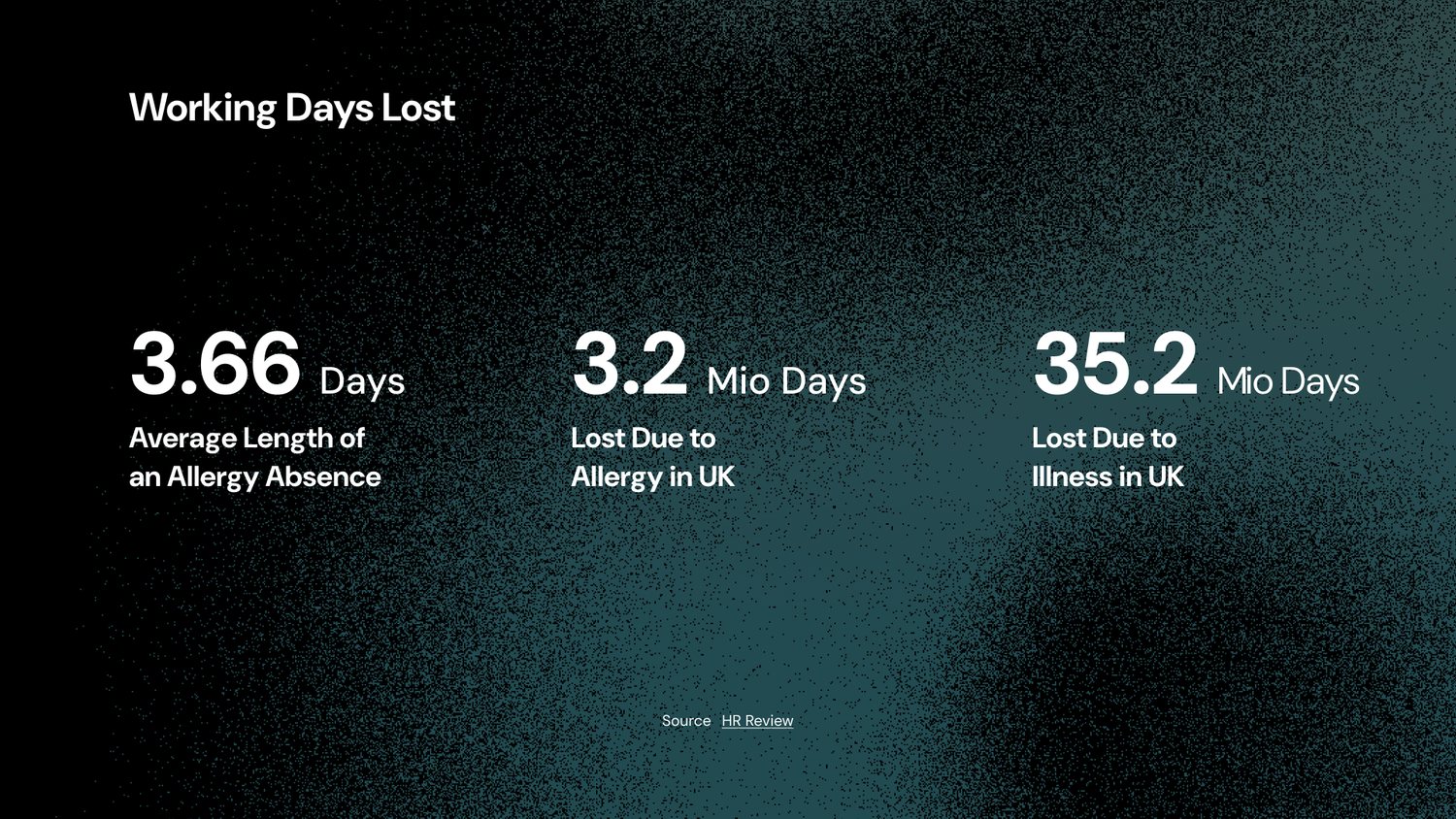

Working days lost to allergy in the UK: 3.66 days is the average length of an allergy absence, 3.2 million days are lost to allergy, and 35.2 million days to illness overall — Why this is worth designing for: hay fever isn't only uncomfortable, it costs the UK millions of working days a year

Background

RES was a team project during my double master's in Innovation Design Engineering at Imperial College London and the Royal College of Art. There were four of us, assembled across the two things the problem needed: engineers who could actually build a pollen sensor, and business students who could work out whether a network of them could ever pay for itself. I joined as the designer, the only one on the team.

That shaped what I was there to do. The engineering question was how to sample pollen accurately and cheaply; the business question was how to distribute it. Neither answers the question a person with hay fever is actually asking, which is whether to go outside this afternoon. Closing that gap was my brief, and everything below is what we took to the final review.

The four-person RES team presenting to a seated review panel: the team standing beside a laptop showing their slides, with reviewers seated at the table in front of them — The four of us presenting RES to the review panel. I'm the only woman in the photo.

My contributions

I owned the experience end of the project: everything that happens after the sensor has a reading.

UI/UX design. The whole app, from the allergy profile a user builds on first launch through to the location alerts and the prediction map.
Customer workshops and interviews. I ran the user sessions, then translated what came out of them into requirements the engineers could build against.
The core idea. That a forecast on its own changes nobody's behaviour, so RES had to ship as a sensor and a decision tool together, not as a data source with an app bolted on.
Product positioning and vision. Deciding what RES was and what it wasn't, then holding that steady when the engineering case and the commercial case pulled in different directions.

User research

We interviewed over 20 allergy sufferers, ran workshops with 10 users, and consulted several professors and industry experts on current allergy-management challenges. From those conversations, one frustration stood out: the lack of personalised allergy-prevention tools.

People want effective, data-driven ways to manage their symptoms, with minimal manual intervention. Everyone has their own way of mitigating symptoms, so we designed the app experience to work with that, refined further by feedback from pollen and allergy experts.

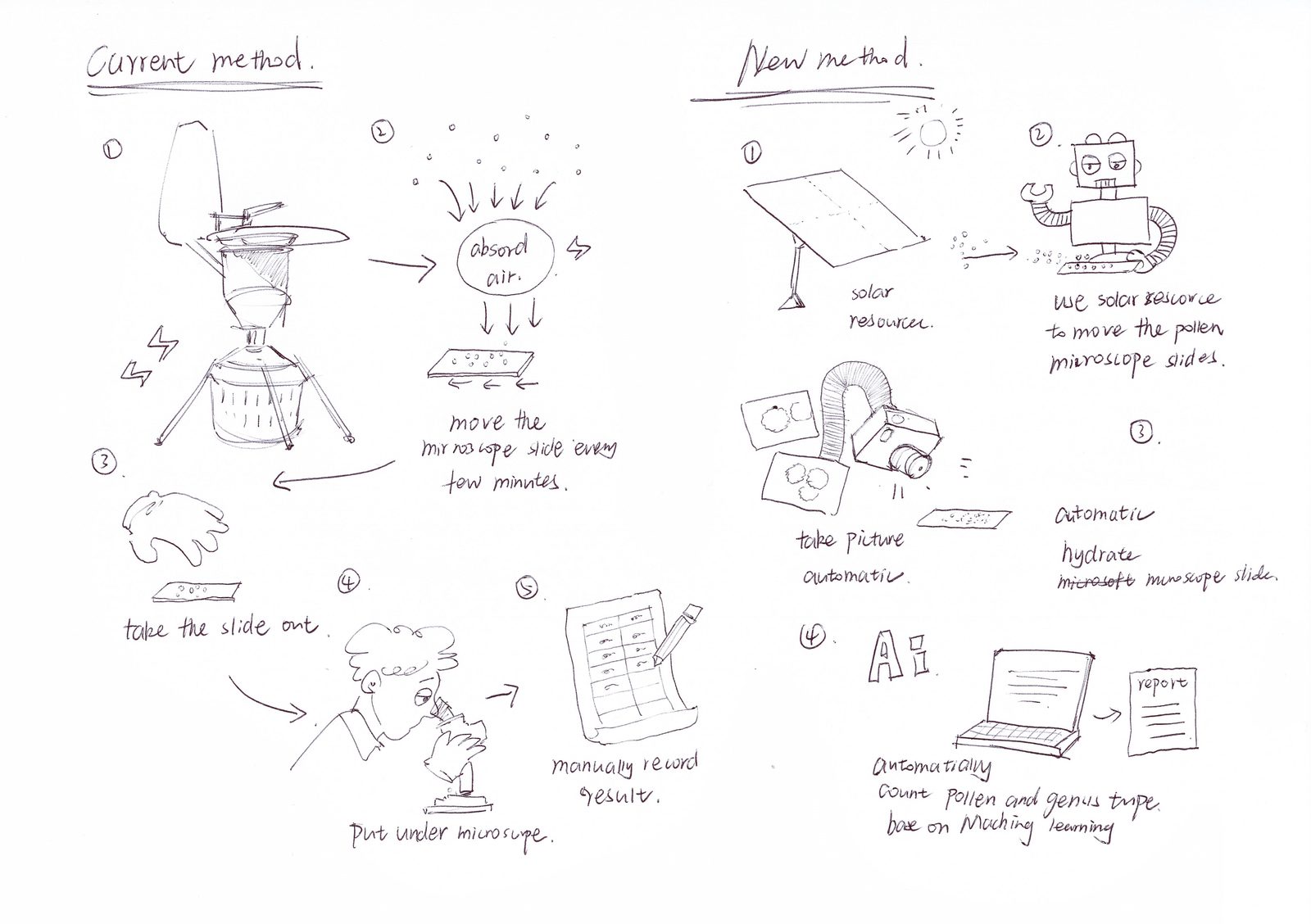

Hand-drawn comparison sketch of the current pollen-sampling method (manual, five slow steps) versus the RES device's new automated, solar-powered, AI-assisted method — Current method vs. the RES approach, early concept sketch

A user workshop in progress: participants around a table covered in worksheets and sketches, with a facilitator holding a prototype of the RES sensor — One of the user workshops. Faces are obscured at the participants' request.

Stakeholder workshop

Today's pollen-measurement system still carries last century's design, with real drawbacks:

Inadequate sensors: limited, unevenly distributed pollen sensors create location bias, undermining reliability across many localities
Unverifiable correlation: unlike weather data, pollen counts are hard to verify; low-fidelity sensors can report low pollen while individuals still react
Cognitive biases: even severe allergy sufferers, lacking accurate testing or knowledge, can misidentify their triggers
No lifestyle change: a forecast alone rarely changes behaviour; people need predictable, actionable data that respects their preferences

"Current methods of pollen allergy avoidance are inadequate; almost any amount of pollen can be an allergic trigger. So what if pollen forecasts could be designed to be more localised and effective for avoidance and mitigation?"

Approach

We looked at allergies from three angles at once: clinically, avoidance is the best treatment; technically, sampling pollen with sufficient accuracy is critical; and from a patient's view, knowing when it's safest to travel matters as much as the forecast itself.

RES Device

Collecting data from multiple distributed sensors removes location bias, widening the reach of pollen-detection data and improving our collective understanding of what's in the air.

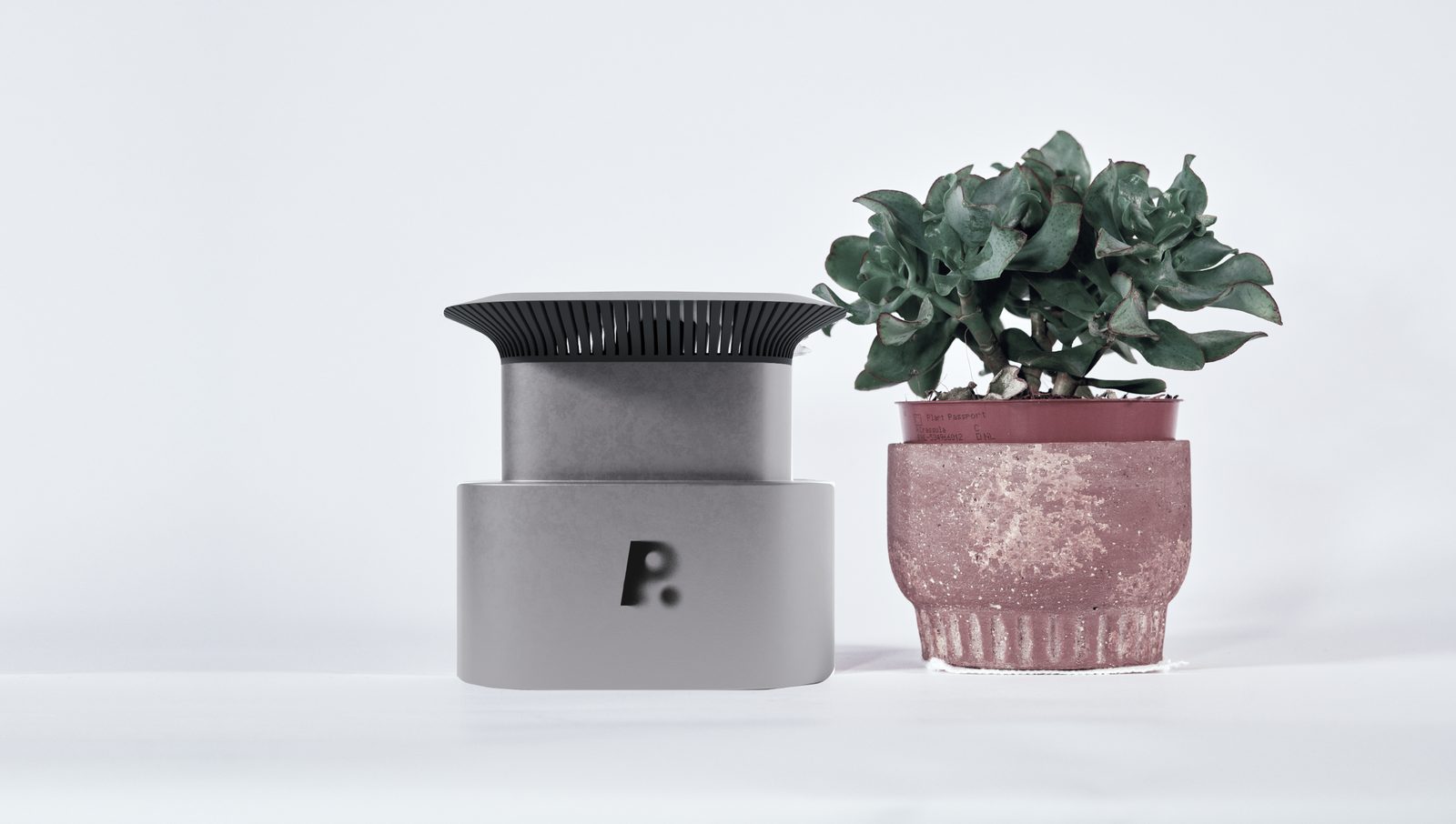

The RES pollen sensor device, a compact grey unit with a vented top, next to a potted succulent plant in a concrete pot — The RES device, designed to sit at home like any other small appliance

A cutaway diagram of the RES sensor, labelling the sampling intake, the optical detection module, the processing board and the solar power unit — Inside the unit: passive intake, optical capture, on-device classification, solar power. Cheap enough to distribute widely, which is the entire point.

RES App

Shows people how to avoid pollen or mitigate their allergies with more bespoke antihistamine dosages, multiplying the sensor's effective reach, not just reporting its readings.

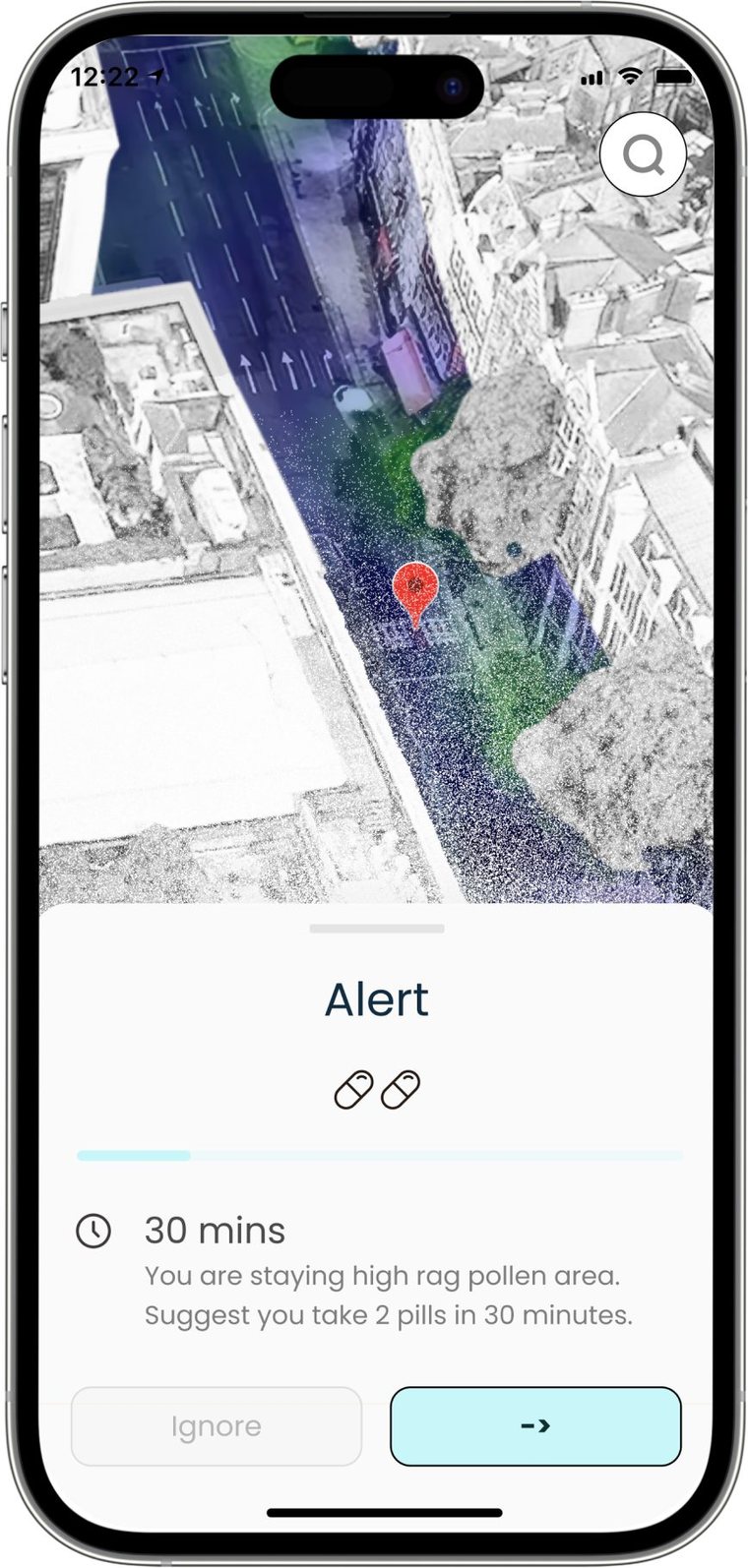

RES app alert screen over a map, reading 'You are staying in a high rag pollen area. Suggest you take 2 pills in 30 minutes', with Ignore and continue buttons — A real-time location alert, with a specific, actionable suggestion

AI-driven

AI and API data enable swift, accurate detection, enhancing immediacy and precision while the distributed sensor network keeps removing location bias.

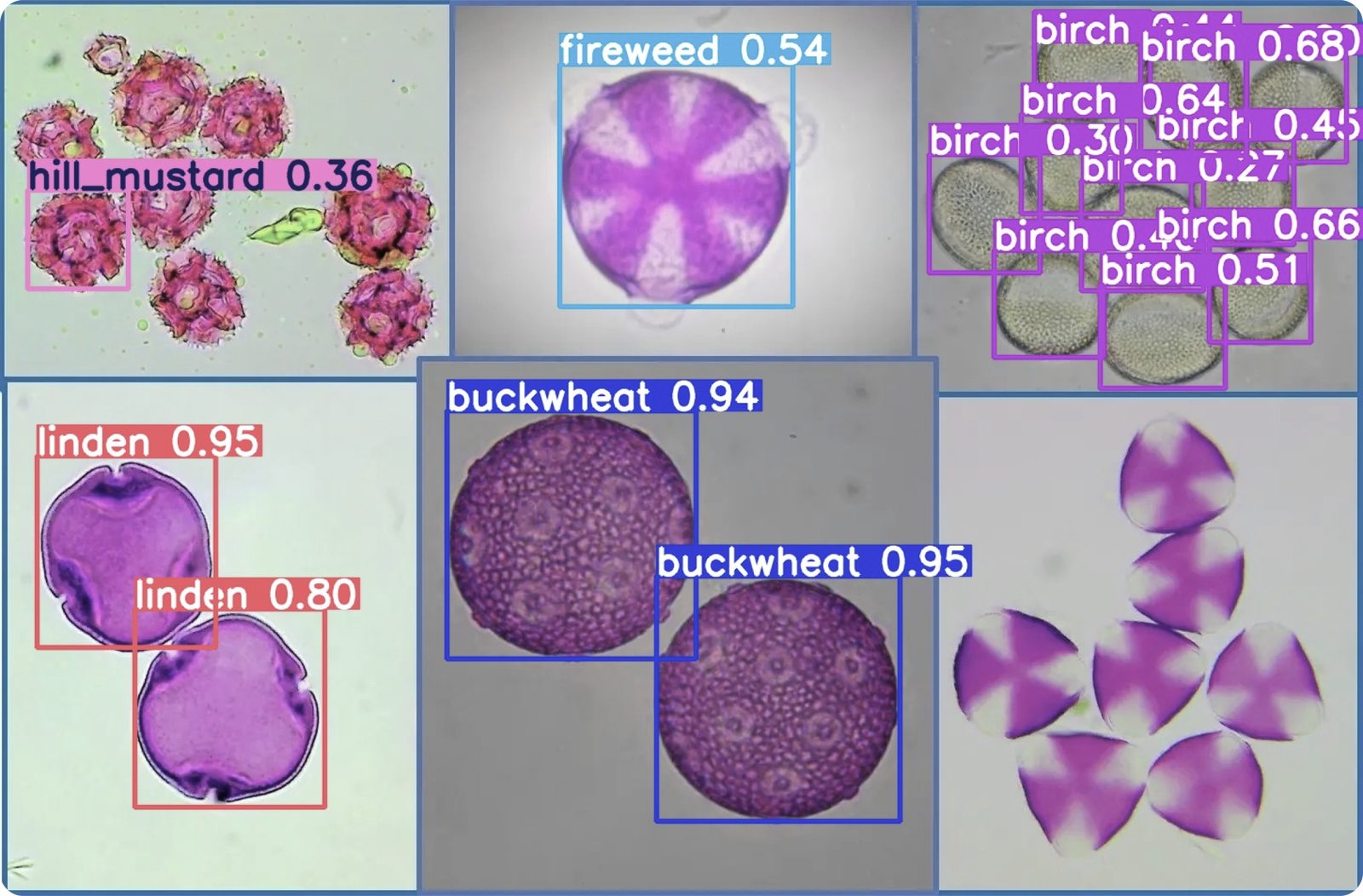

Microscope images of six pollen types — hill mustard, fireweed, birch, linden, buckwheat — each automatically labelled with a machine-learning confidence score — Machine-learning pollen classification, trained across multiple species

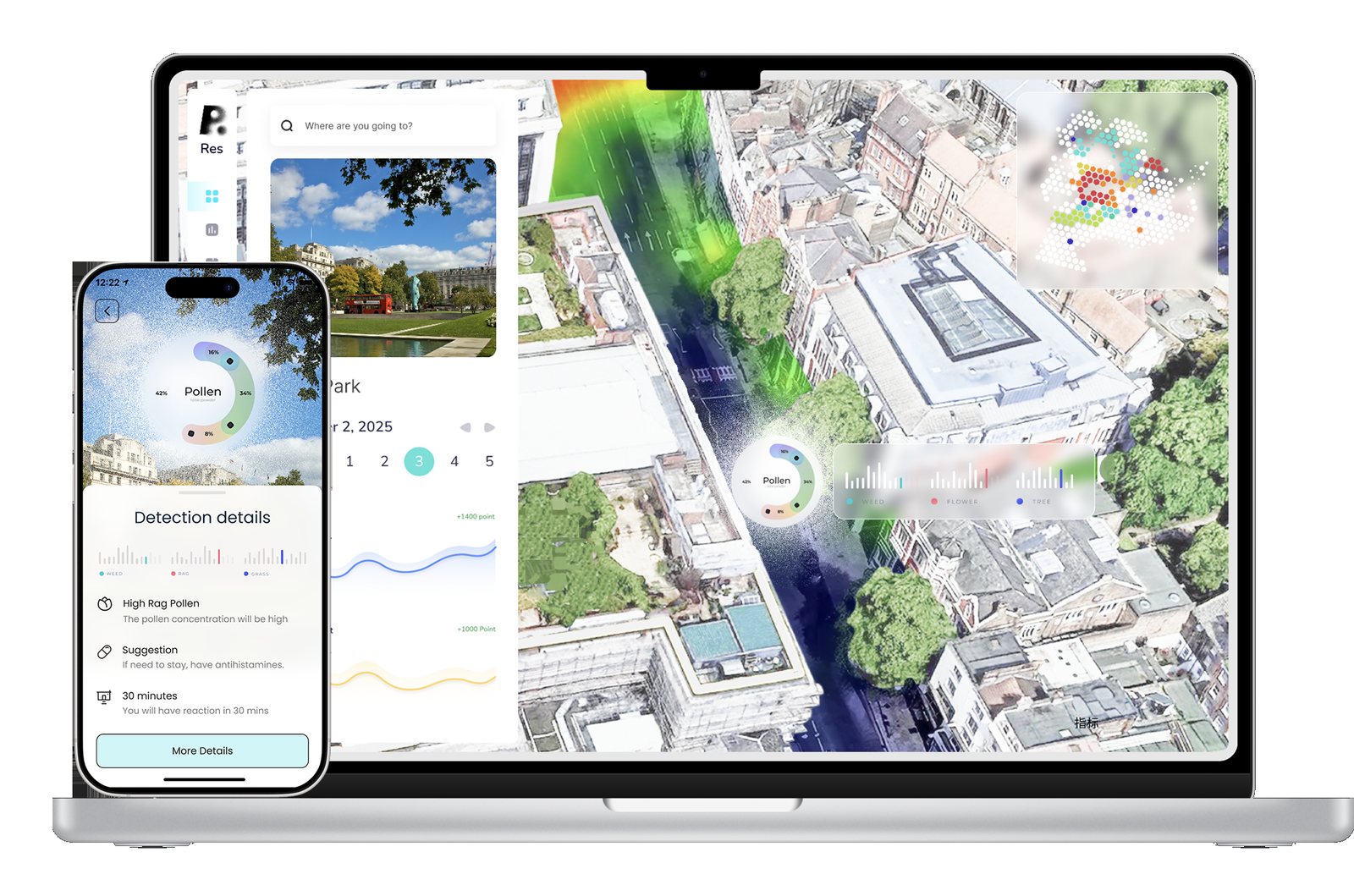

Prediction map

A simulated RES pollen map over a few hours. Interact with gestures and explore hour by hour.

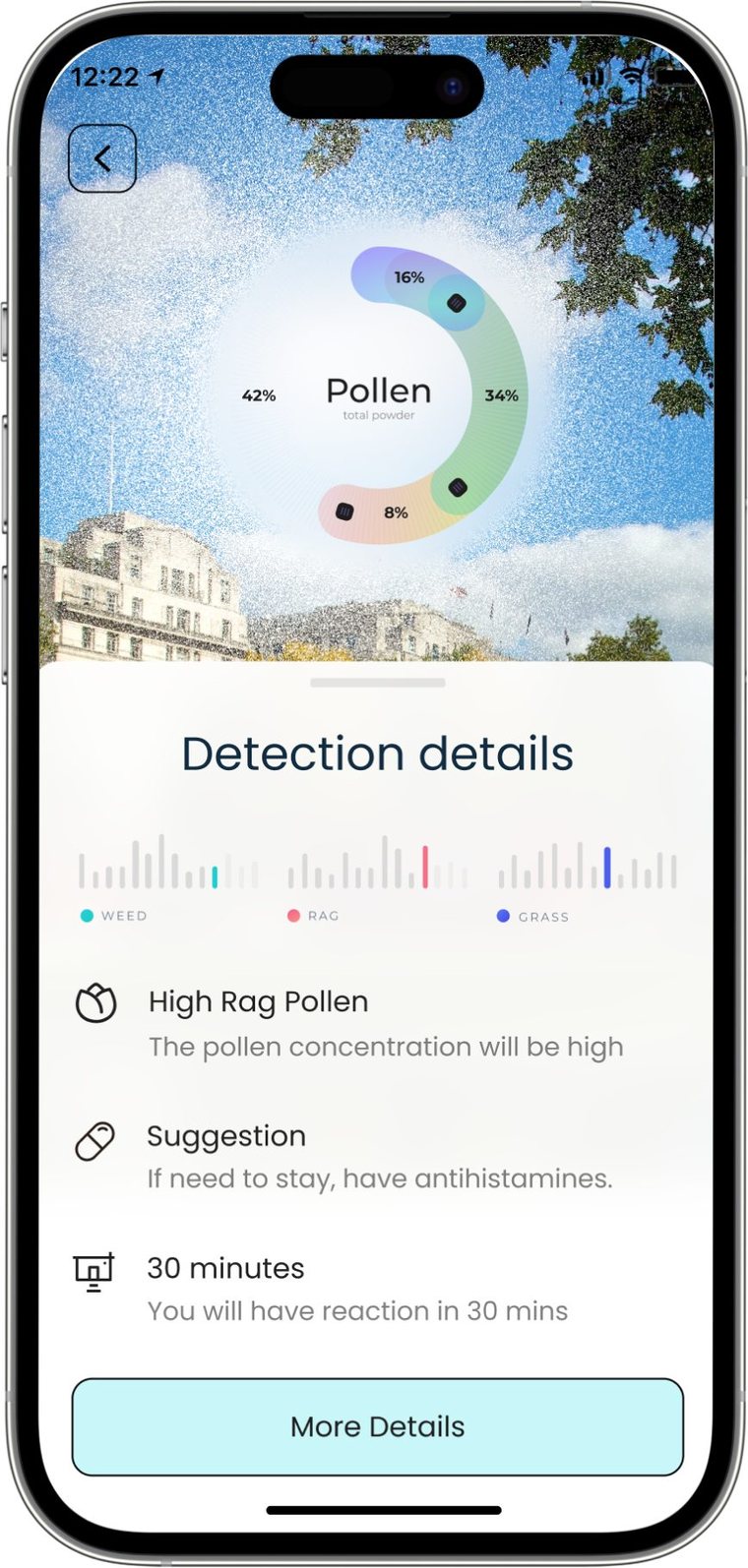

RES app detection-details screen showing a pollen breakdown ring chart — Weed, Rag and Grass percentages — over a photo of a London street — Detection details: pollen type breakdown for the user's current location

Customised app

Allergy details: everyone can see system info and self-report at any time, becoming part of the overall system service. Allergy forecast: predicts in real time when and where a reaction is likely, telling users when to take medicine and at what dosage the first time they're exposed.

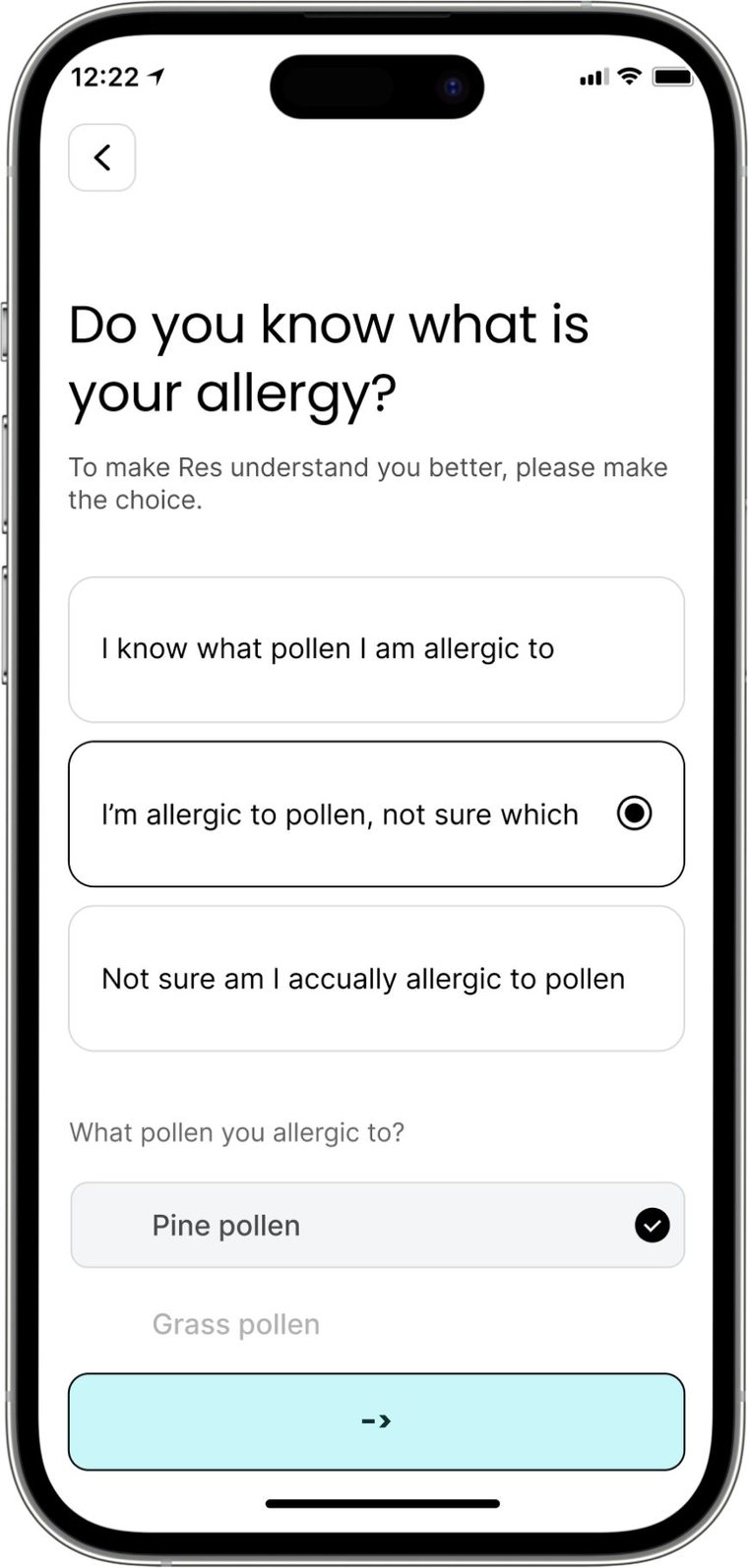

RES app onboarding screen asking 'Do you know what is your allergy?' with options for known, unknown, and a pollen-type selector — Onboarding: building a personal allergy profile from the first session

Revisiting the interface, 2026

The screens above are what the team shipped in 2025. Coming back to them after a year at Xiaomi Auto and 1Soul, I can see exactly where my craft was thinner than my thinking: the data was there, but it wasn't ranked, so the screen never said which number to act on. Percentages sat in a ring chart that's hard to compare across three categories. The advice was generic where the whole premise of RES is that it knows your trigger.

So I redesigned the three core screens against the same requirements, on a deliberately narrow system: a cool grey ground with a faint lavender cast, one accent colour carrying the reading you're meant to act on and a single muted second tone for everything ranked below it, figures set large enough to read at arm's length, and frosted glass only where a sheet genuinely sits over live context. The ground matters more than it sounds. My first pass used warm cream and amber, and it made the app feel like the symptom rather than the tool; cooling it down gives the one warm accent somewhere to land.

Nothing here shipped; it's a personal exercise, dated as such, and I'm keeping the originals alongside because the gap is the point.

The 2025 RES alert screen: a map with a white sheet reading 'Alert', a pill icon, '30 mins' and 'You are staying high rag pollen area'

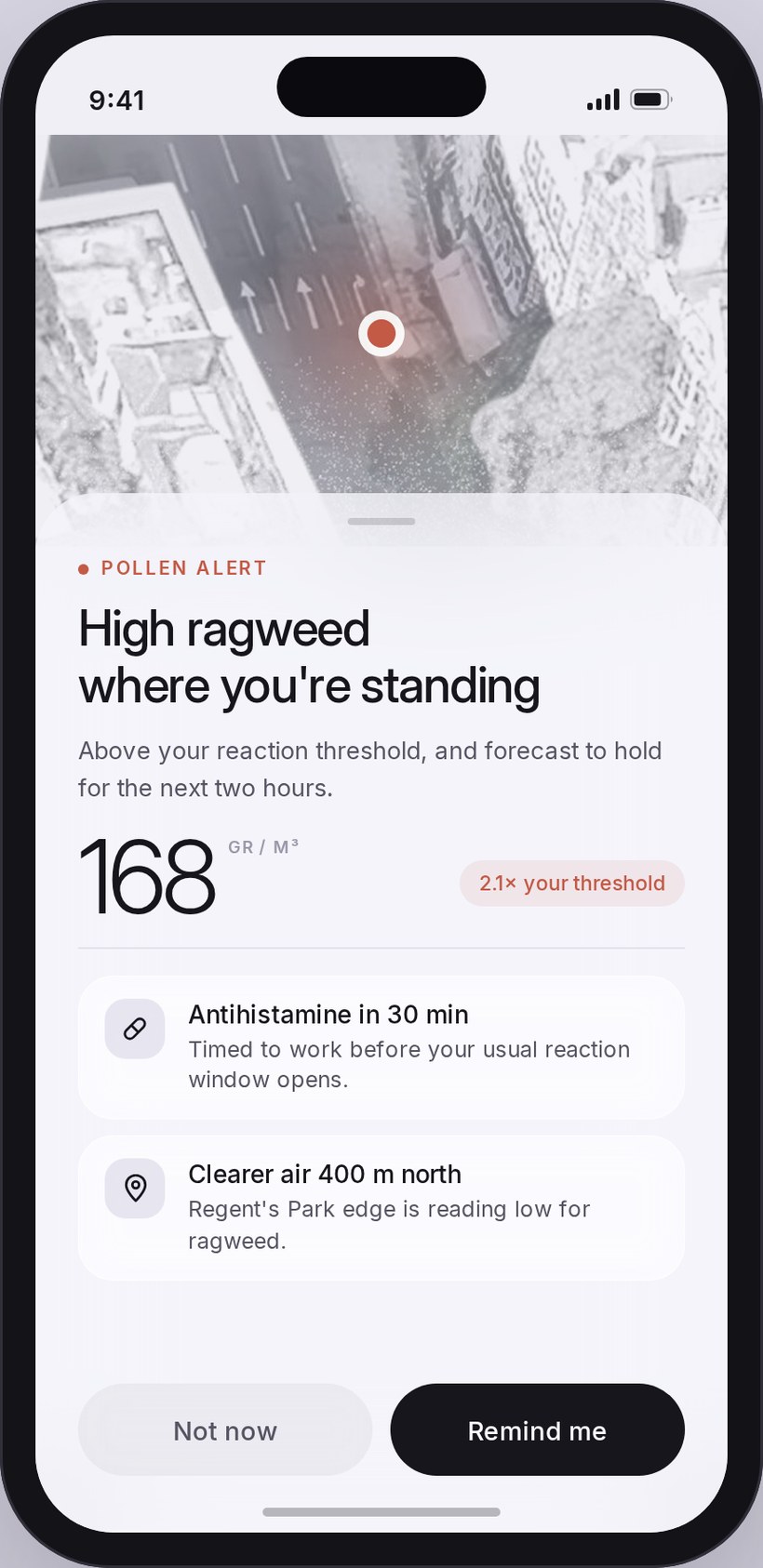

The 2026 redesign of the alert screen: a frosted-glass sheet over an aerial map of the street with the user's position marked, headed 'High ragweed where you're standing', with a 168 grains per cubic metre reading marked as 2.1 times the user's threshold, an antihistamine timing row, a cleaner-air suggestion, and Not now / Remind me buttons

Alert. The original led with the word "Alert" and a duration. The redesign leads with what's actually happening and to whom, states the reading against the user's own threshold, and turns "take 2 pills" into a timed action plus an escape route: where the air is clearer.

The 2025 detection details screen: a ring chart reading 8%, three sparkline groups labelled Weed, Rag and Grass, then High Rag Pollen and Suggestion rows

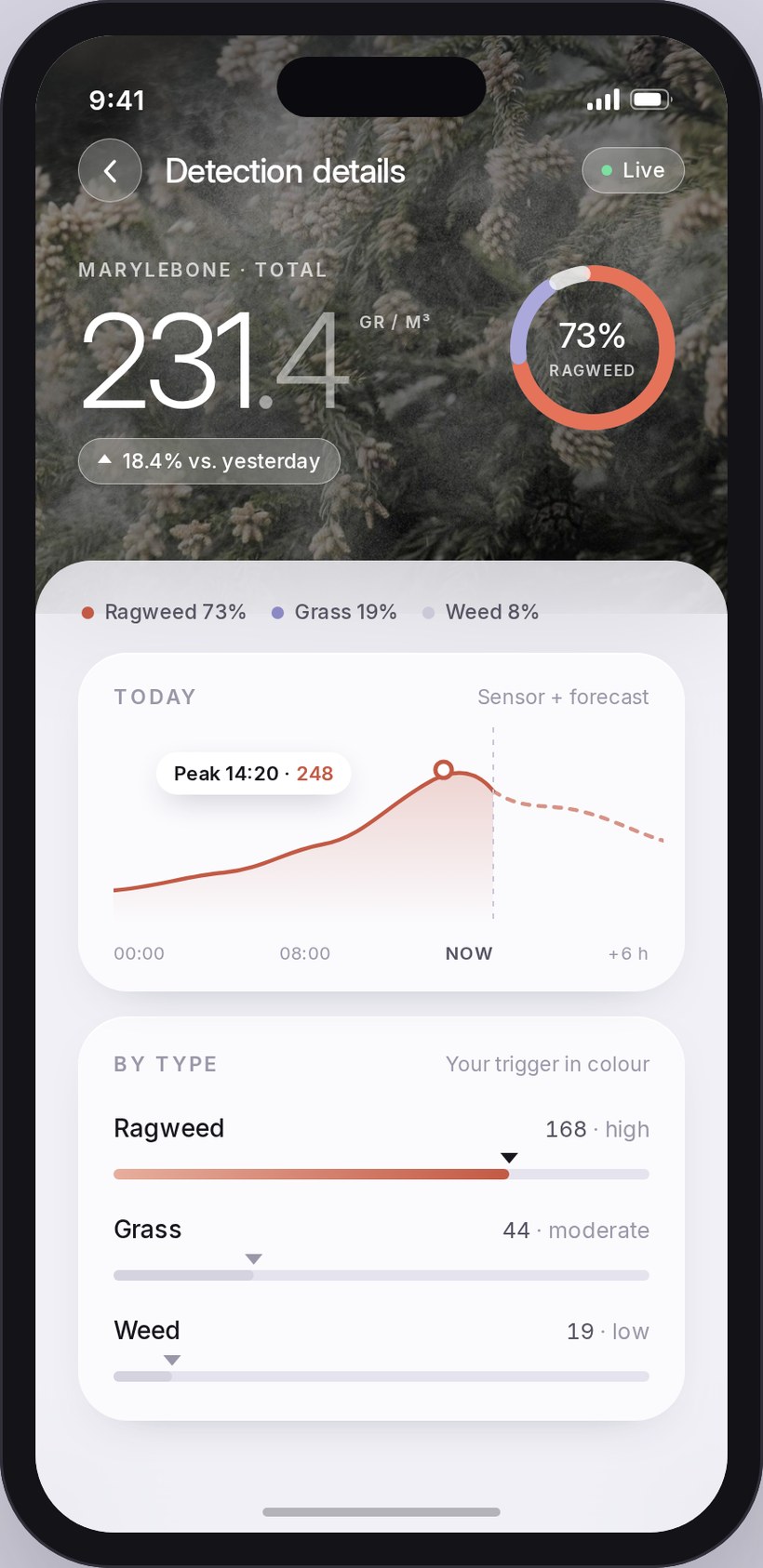

The 2026 redesign of detection details: a photographic header of conifer pollen drifting on the air, carrying an oversized 231 grains per cubic metre reading and the pollen composition ring, over a sheet holding a single day-long chart that runs past NOW into the forecast, and the three pollen types ranked on one shared scale with only the user's trigger in colour

Detection details. Three separate sparklines can't be compared at a glance, so the original made you do the work. Two things stay, because they were the right ideas: the composition ring, which tells you in one glance what the air is made of, and the photograph, which is what stops a screen full of numbers feeling like a spreadsheet. What changed is everything around them. Past and forecast are now one continuous line through a NOW marker instead of two separate widgets, the three types are ranked on one shared scale, and colour is spent only on the type you actually react to.

The 2025 onboarding screen asking 'Do you know what is your allergy?'

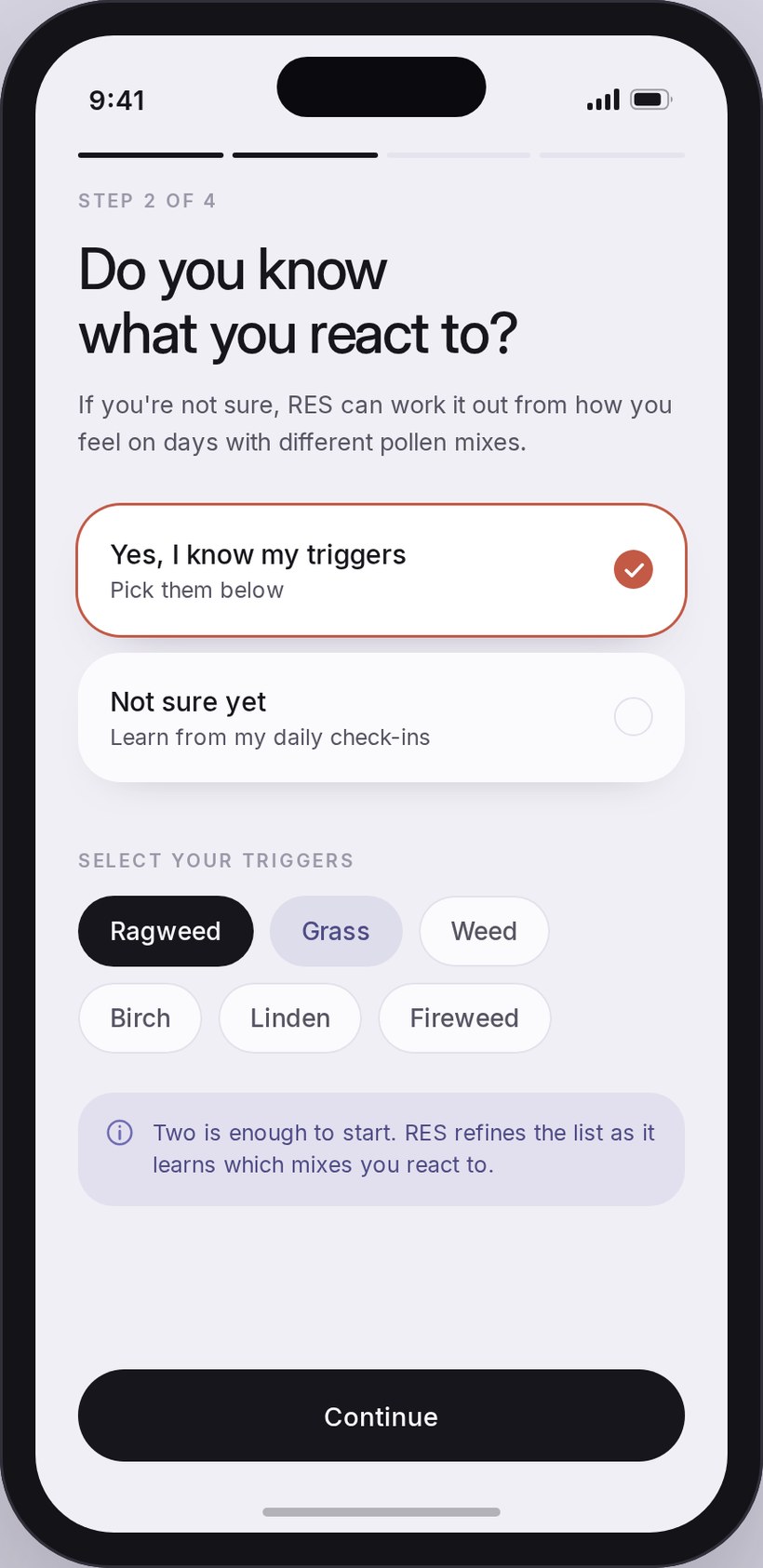

The 2026 redesign of onboarding: 'Do you know what you react to?' with a step indicator, two selectable cards for knowing or not knowing your triggers, and a grid of pollen-type chips

Onboarding. Asking someone to name their allergen assumes they've been tested; most haven't. The redesign makes "not sure yet" a first-class answer that RES can learn from, shows progress through the flow, and only reveals the pollen picker once it's relevant.
